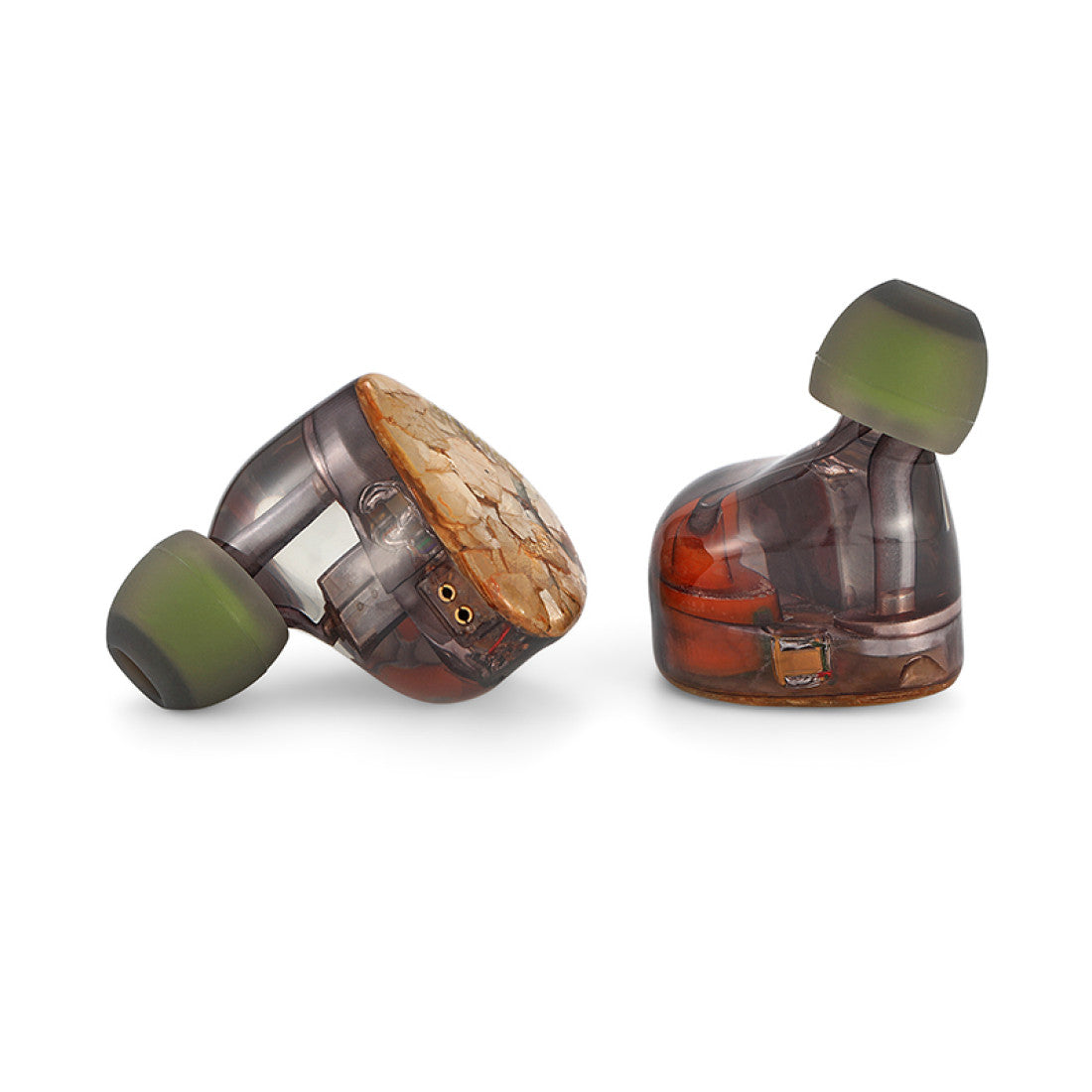

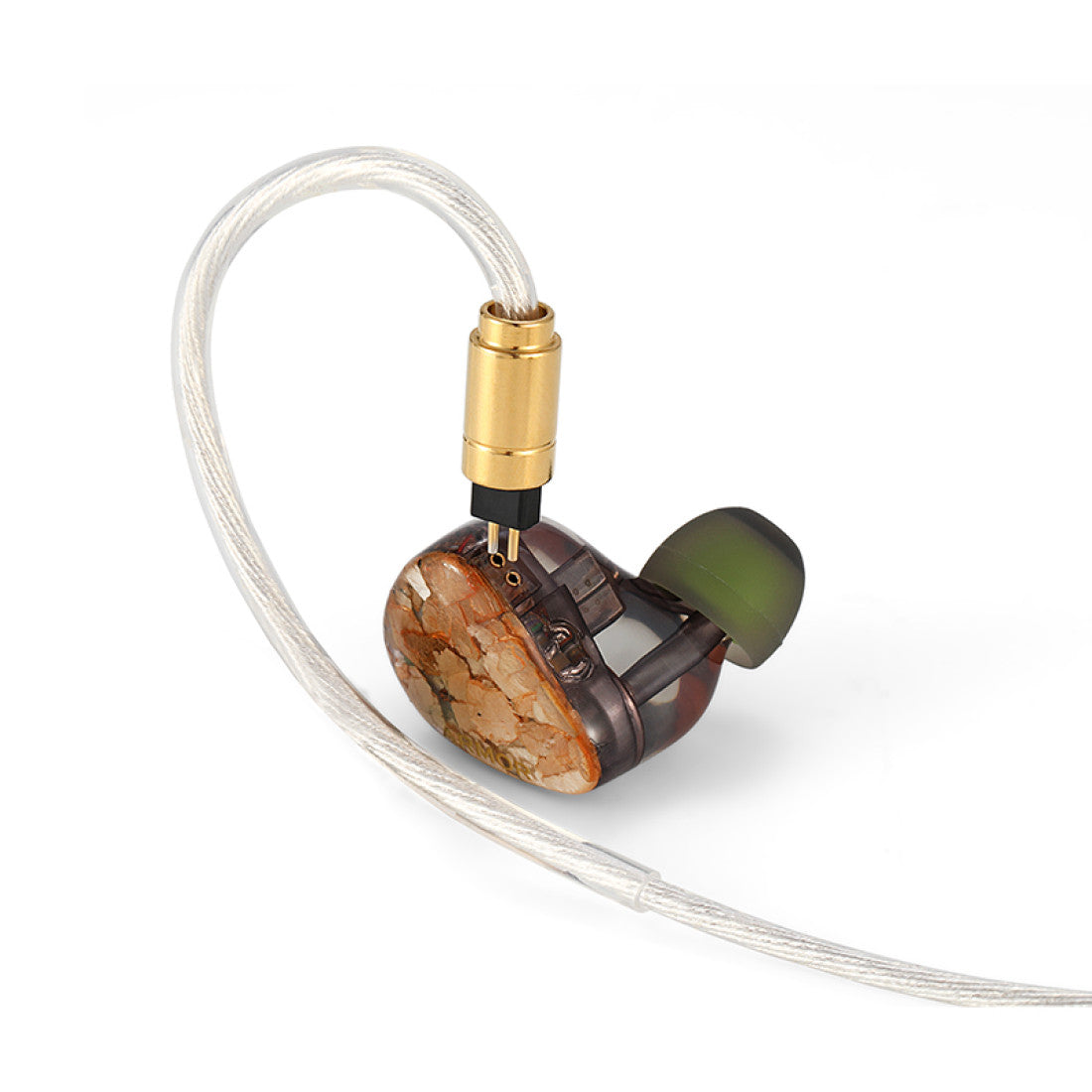

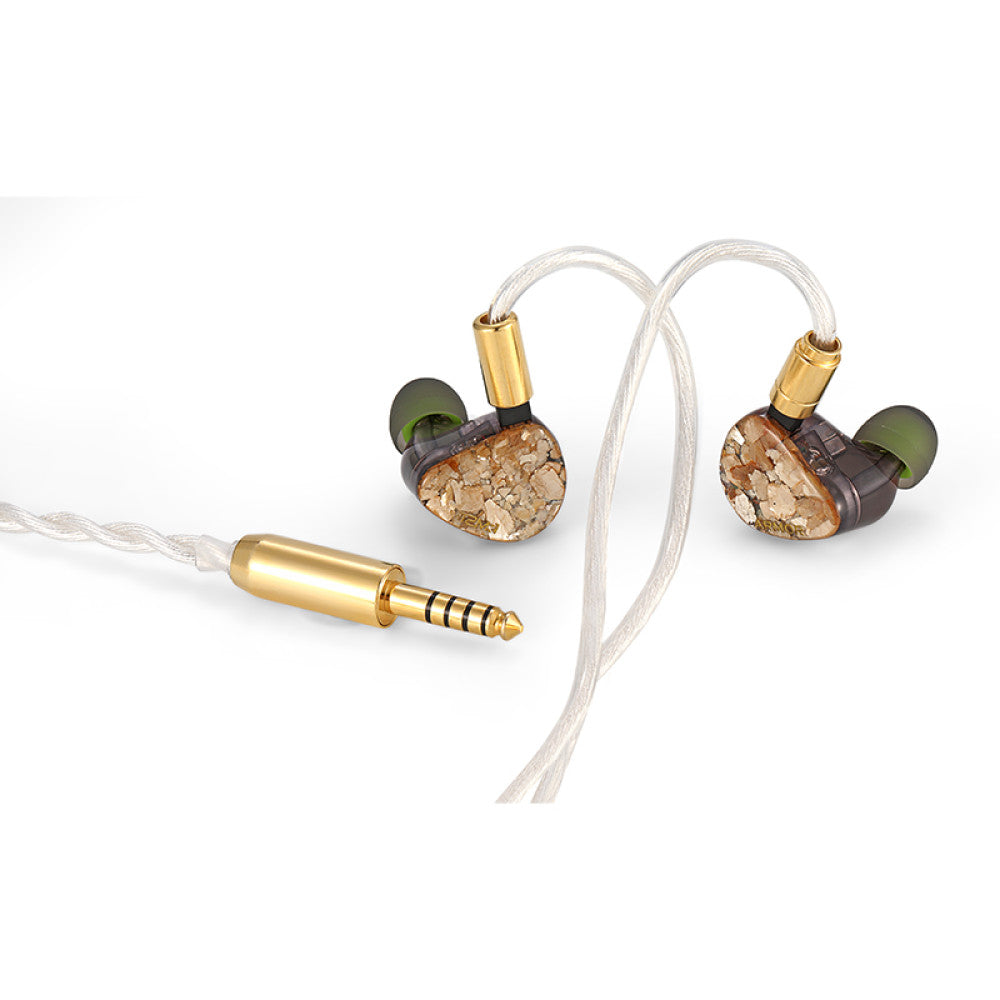

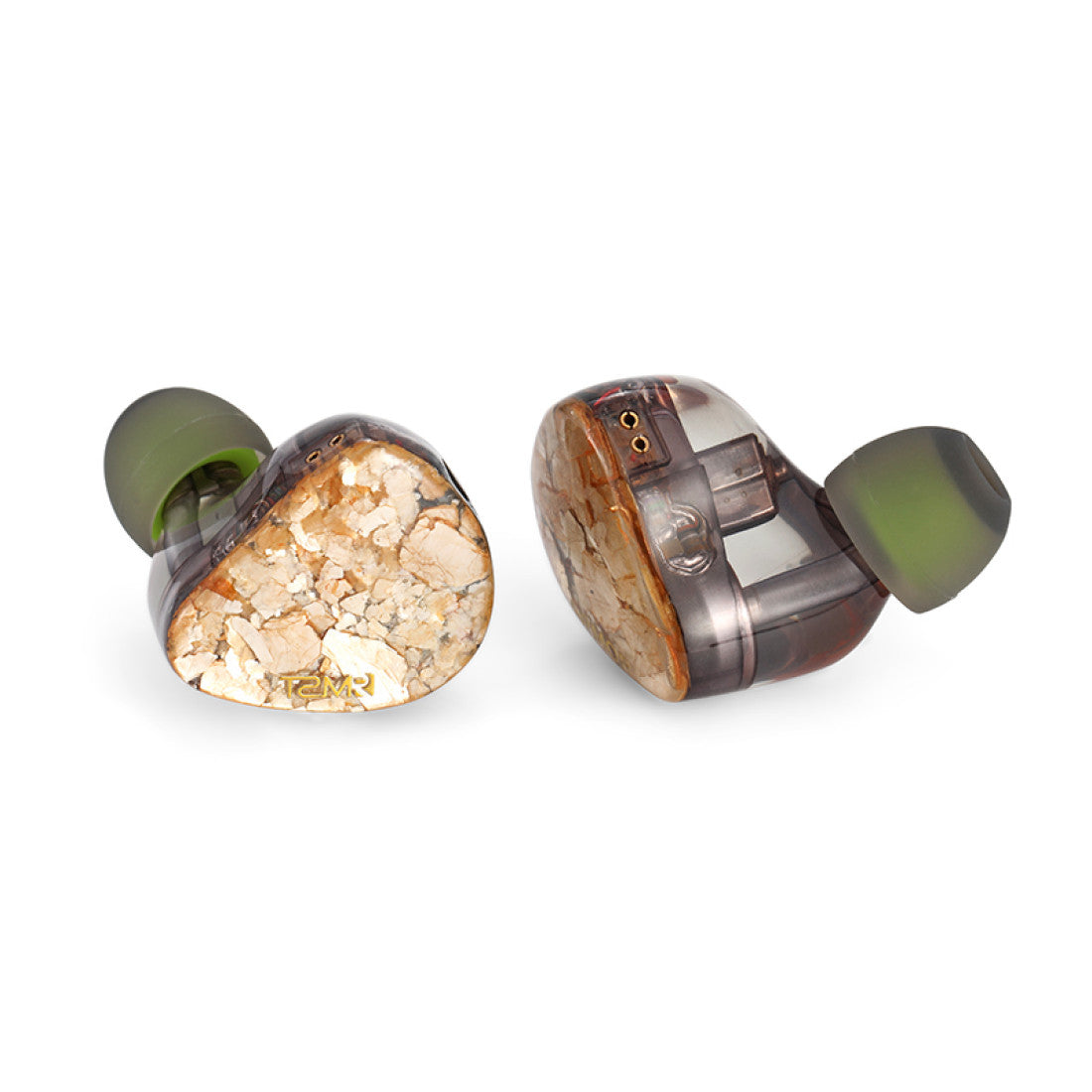

TSMR Armor

Tansio Mirai TSMR ARMOR 2 Dynamic + 2 Balanced Armature + 1 Electrostatic Hybrid 2Pin 0.78mm  Audiophile IEMs with Tuning Switches

Description

5 drivers each side, total 10 drivers.

2 dynamic + 2 balanced armature + 1 electret electrostatic driver

Low frequency tuning switches

High quality 3D printed  resin cavity

Manual lamination process panels

Driver configuration

2 x 8mm high magnetic dynamic driver, hollow coaxial structure, carbon mixed diaphragm responsible for low frequency.

2 Knowles balanced armature responsible for mid frequency.

1 electret electrostatic driver responsible for high frequency.

About tuning:

Low frequency

The use of coaxial 8MM dual bass drivers ensures that the low frequency energy of the in-ear earphones is fully guaranteed, and the bass can be experienced in terms of both quantity and texture. Equipped with a low frequency adjustment switch, it can adapt to various style requirements more easily

Middle frequency

The imported dual balanced armature composite drivers from Knowles of the United States ensures the high-quality reproduction of the middle frequency, and the sound is more beautiful, rich in details, delicate and real. While maintaining high resolution, it also takes into account the beauty of the human voice

High frequency

The addition of a new electrostatic driver makes the high frequency more beautiful and pleasant. While embellishing the details, it brings a richer sense of layering and improves the overall transparency of the sound. The smooth tuning makes the high frequency not irritating, and at the same time has a very ear-catching listening experience

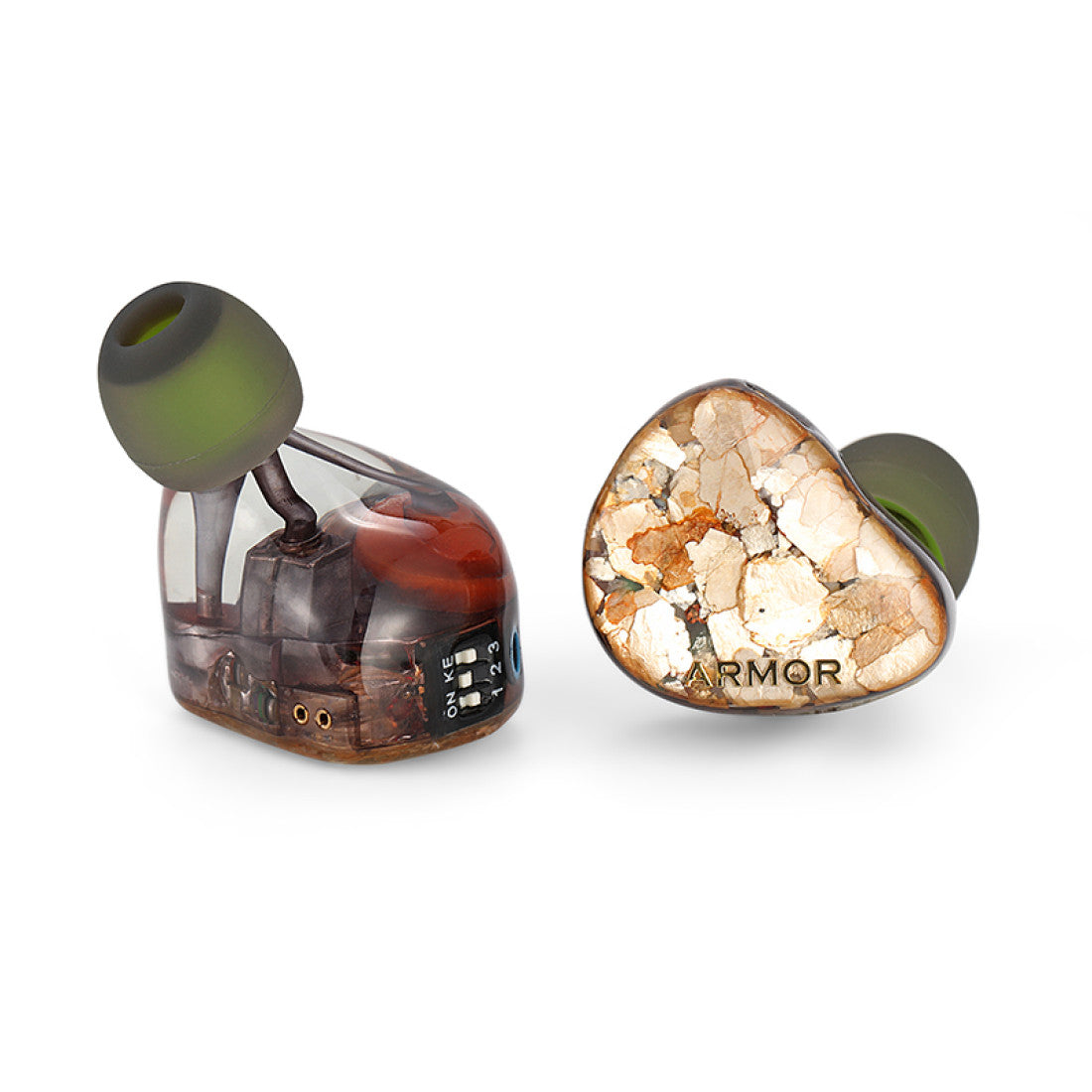

Low frequency tuning switch

2 sides with 20 pieces frequency division element, Precise, scientific tuning.

Default 020 standard tuning. The higher control coefficient, the lower the low frequency energy.

All switches are turned off to NO BASS mode. 0 indicates that the switch is closed downward.

The number1/2/3 indicates that the switch is turned on upward.

100(Enhanced Mode): control coefficient is 0.51

020(Standard Mode): control coefficient is 1.0

003(Attenuation Mode): control coefficient is 1.47

Specification

Brand: TANSIO MIRAI

Model: ARMOR

3-way crossover, 3 channels

Driver: 2 DD + 2 BA + 1EST

Impedance: 11 ohm

Sensitivity: 103dB

Frequency response range: 10~45kHz

Connector: 2pin 0.78mm

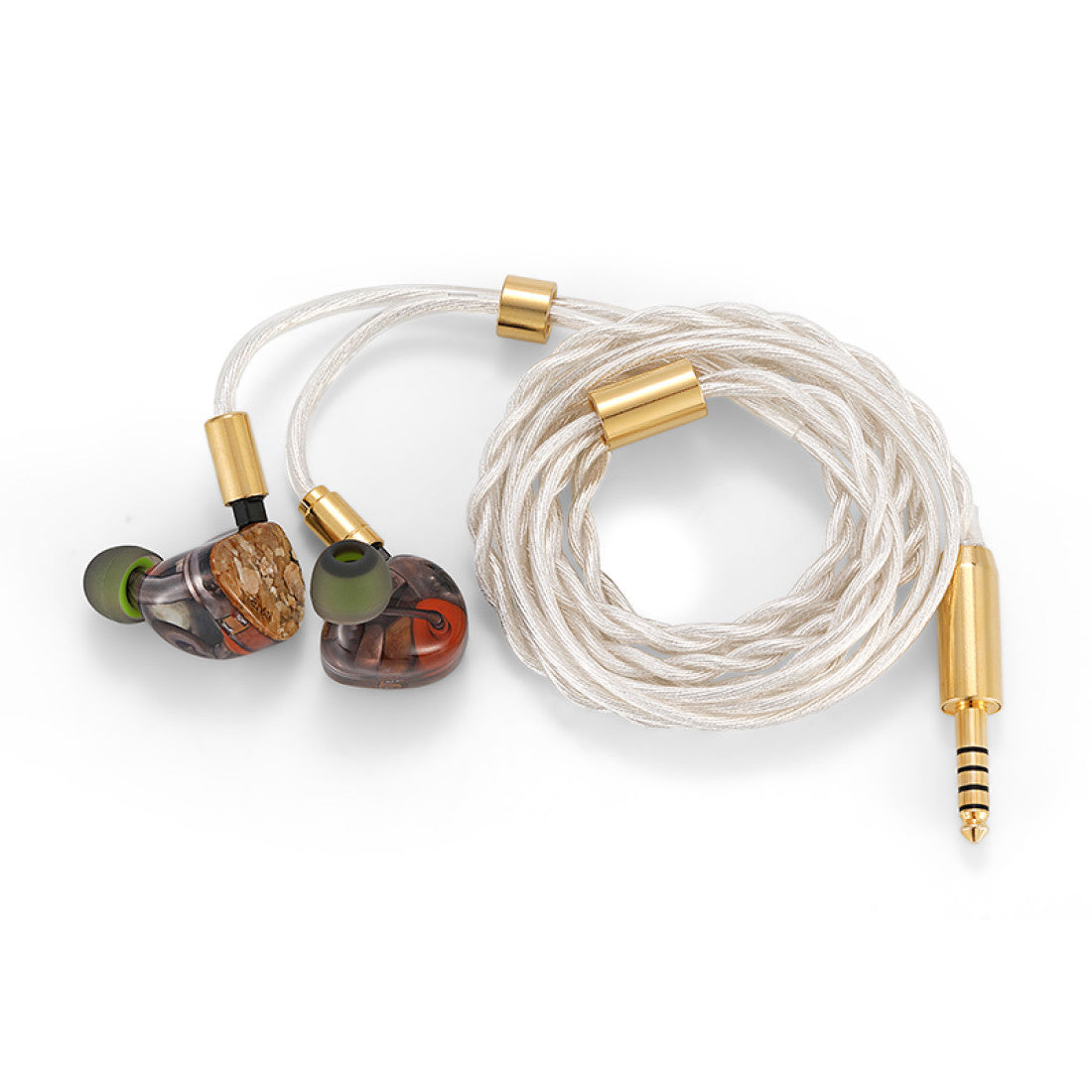

Cable: 8 Strands OFC Silver-plated

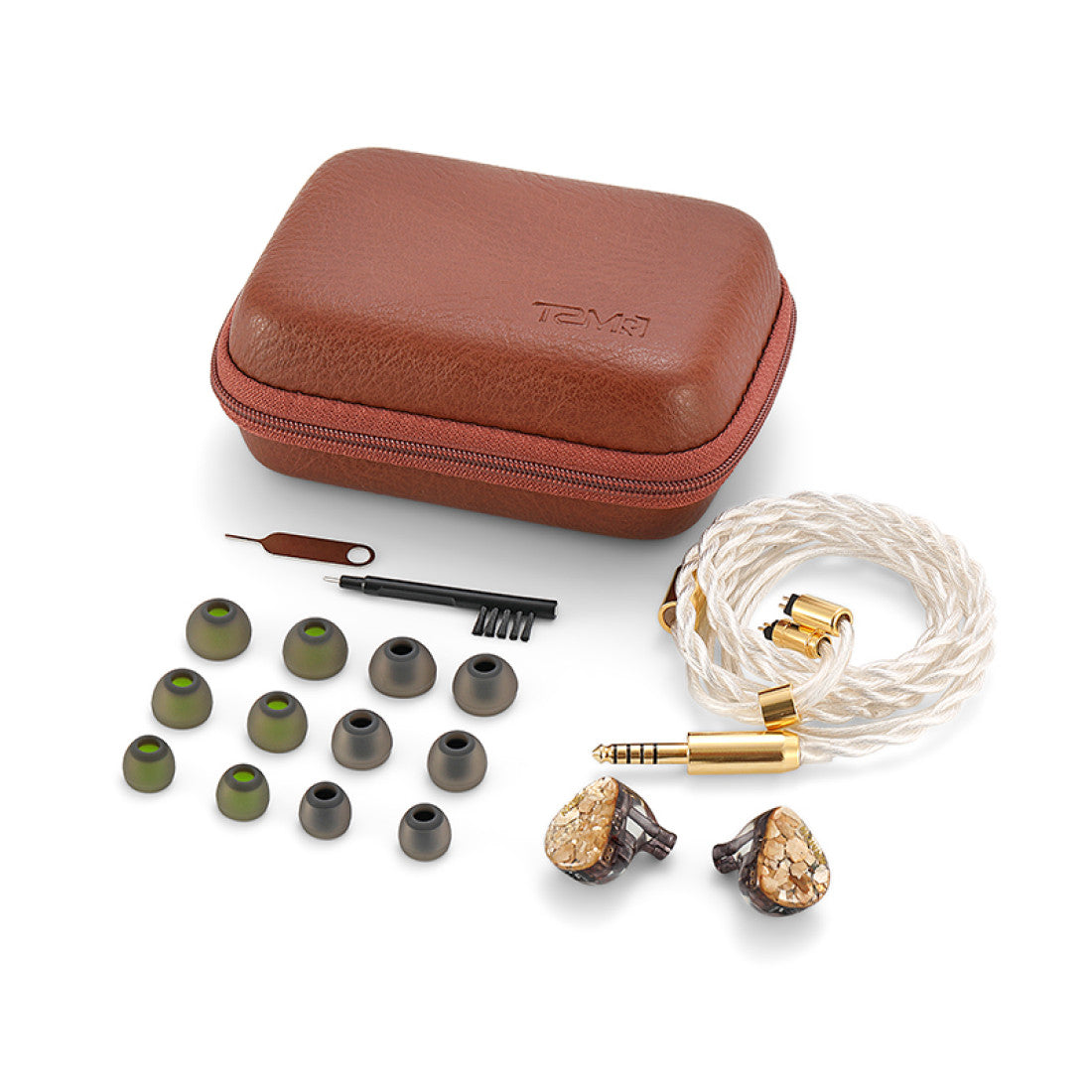

Package

TSMR ARMOR Earphone

6 pairs of Eartips

Earphone case
